Against the backdrop of rapid semiconductor industry growth, continuous chip process scaling, and rising performance requirements, chip test handlers have become critical equipment in the semiconductor assembly and test (OSAT) process — ensuring product quality, improving production efficiency, and controlling manufacturing costs.
Shenzhen Yuanwang Industrial Automation Equipment Co., Ltd. (Yuanwang Intelligence) , a professional automation equipment provider with deep roots in industrial automation, has developed its in-house FD and GT series integrated test, sort, mark, tape & reel machines. These solutions offer high speed, high stability, and full-function, one-stop capabilities for semiconductor packaging and test, helping customers achieve intelligent, precise, and highly efficient upgrades in their back-end processes.
1. Industry Needs and Application Scenarios for Chip Test Handlers
With explosive growth in 5G communications, artificial intelligence, electric vehicles, consumer electronics, and other fields, the global semiconductor market continues to expand, driving extreme demands for chip performance, reliability, and yield. Chip test handlers, as core equipment in the final test stage, are used for automatic loading, precise positioning, electrical testing, performance sorting, laser marking, inspection, and tape & reel output of packaged chips. They serve as a critical quality gateway connecting chip manufacturing to end applications.
Key challenges currently facing the industry:
· Miniaturization of chip dimensions and diversification of package types lead to poor compatibility of general-purpose equipment and low changeover efficiency.
· High-volume production demands exceed the UPH capabilities of traditional equipment, making it difficult to match mass delivery schedules.
· Insufficient testing stability and high poor-contact rates affect yield and production continuity.
· High equipment procurement and maintenance costs, with expensive spare parts, result in high total cost of ownership.
Main application scenarios for chip test handlers:
· Consumer electronics chips: SOT, SOD, QFN, DFN, SOP, TSSOP, TO series, and other conventional/miniature package types.
· Automotive electronics chips: Reliability testing and sorting for automotive-grade discrete devices and control chips.
· Industrial control chips: Full performance verification and screening for high-stability discrete devices and power chips.
2. Yuanwang Intelligence FD/GT Series Integrated Test, Sort, Mark, Tape & Reel Machines
Yuanwang Intelligence has built its product portfolio around the FD Handler integrated platform, offering two standardized series — FD and GT — covering mainstream package types and meeting diverse requirements for throughput, precision, and application scenarios.
FD1840
· Compatible packages: SOT, TSOT, SOD, QFN, DFN
· Throughput: UPH 40K
· Positioning: High-speed test and sort general-purpose machine for small-to-medium batches
FD1820 / GT1820
· Compatible packages: SOP, TSSOP, TO series
· Throughput: UPH 20K
· Positioning: Stable test handler for wide-body packages
FD1850
· Compatible packages: SOT, TSOT, SOD, QFN, DFN
· Throughput: UPH 50K
· Positioning: Industry-leading speed, excellent performance, outstanding cost-performance ratio for test, sort, mark, inspection, and tape & reel
GT1850
· Compatible packages: QFN, DFN / SOT, TSOT, SOD series
· Throughput: UPH 50K
· Positioning: Dedicated high-speed test handler for miniature packages

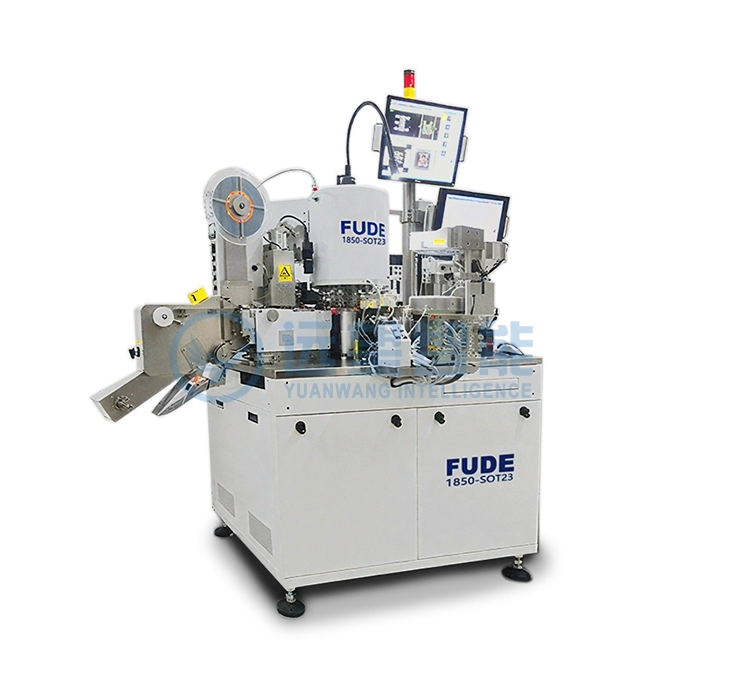

3. Core Technology and Performance Advantages of the FD1850
As Yuanwang Intelligence’s flagship model, the FD1850 Handler delivers eight major advantages: high speed, high stability, full functionality, high quality, good service, easy expandability, affordable spare parts, and competitive pricing.
· High Speed
Adopts the FD turret system with a DDR motor, offering industry-leading torque-to-mass ratio for faster indexing speed and higher positioning accuracy. UPH reaches 50K, significantly improving production line throughput.
· High Stability
Built with top-tier components, precision manufacturing processes, and a strict quality system. Equipment MTBF ≥168 hours, MTBA ≥120 minutes, MTTA ≥5 minutes, ensuring industry-leading operational continuity.
· High Quality
Poor contact rate during testing <3‰, effectively reducing false and missed measurements, guaranteeing sorting accuracy and product yield.
Full-Function Integration

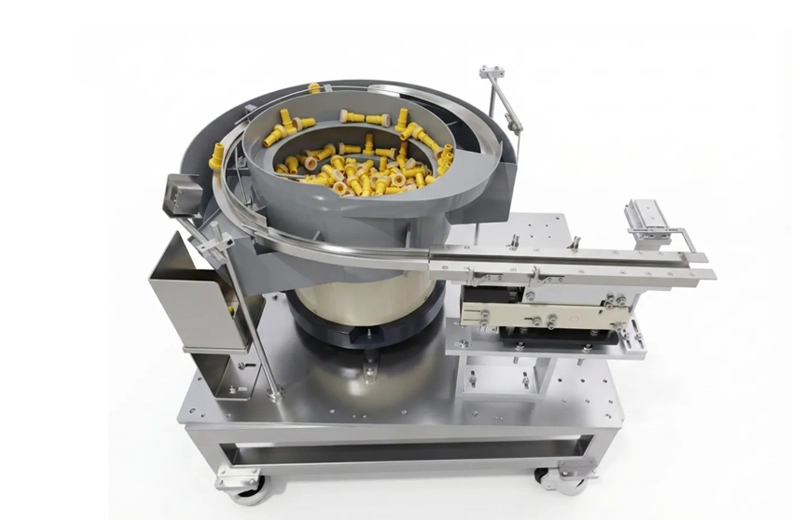

· Feeding: Bowl feeder (single lane) + linear vibration feed
· Output: Heat-sealing tape & reel
Integrates testing, sorting, marking, inspection, and taping in one complete process — one machine completes post-packaging chip handling.
· High Cost-Performance and Easy Maintenance
Competitive machine pricing, affordable spare parts, low ongoing operational costs. Supports functional expansion to adapt to more package types and future production line upgrades.
4. Why Choose Yuanwang Intelligence?
Yuanwang Intelligence has built a complete technology and service system around chip test handlers, ensuring reliable equipment performance and an excellent customer experience.
· In-House Core Technology
Self-developed FD turret system and DDR motor drive technology, mastering core algorithms for high-speed precision sorting. Equipment performance reaches advanced industry levels.
· Complete Product Matrix
Full series including FD1820/1840/1850 and GT1820/1850, covering mainstream packages such as SOT, SOD, QFN, DFN, SOP, TSSOP, and TO — a one-stop solution for diverse testing needs.
· Extreme Stability Design
From component selection to assembly processes, strict quality control ensures long-term continuous and stable operation, minimizing downtime losses.
· High Cost-Performance Service System
Competitive pricing, affordable and easily available spare parts, plus professional technical support with fast response, including on-site commissioning and after-sales service.
Conclusion
As semiconductor localization accelerates and packaging & test efficiency demands rise, the speed, stability, and cost-effectiveness of chip test handlers directly determine a manufacturer’s production competitiveness. Yuanwang Intelligence’s FD/GT series, represented by the FD1850 integrated test, sort, mark, tape & reel machine, delivers high-speed DDR motor performance, high-stability construction, full-function integration, affordable pricing, and responsive service — providing efficient and reliable solutions for mainstream package types including SOT, QFN, DFN, and SOP. Moving forward, Yuanwang Intelligence will continue to refine its technology and products, becoming a trusted automation equipment partner in the semiconductor assembly and test industry with higher performance, lower costs, and better service.
