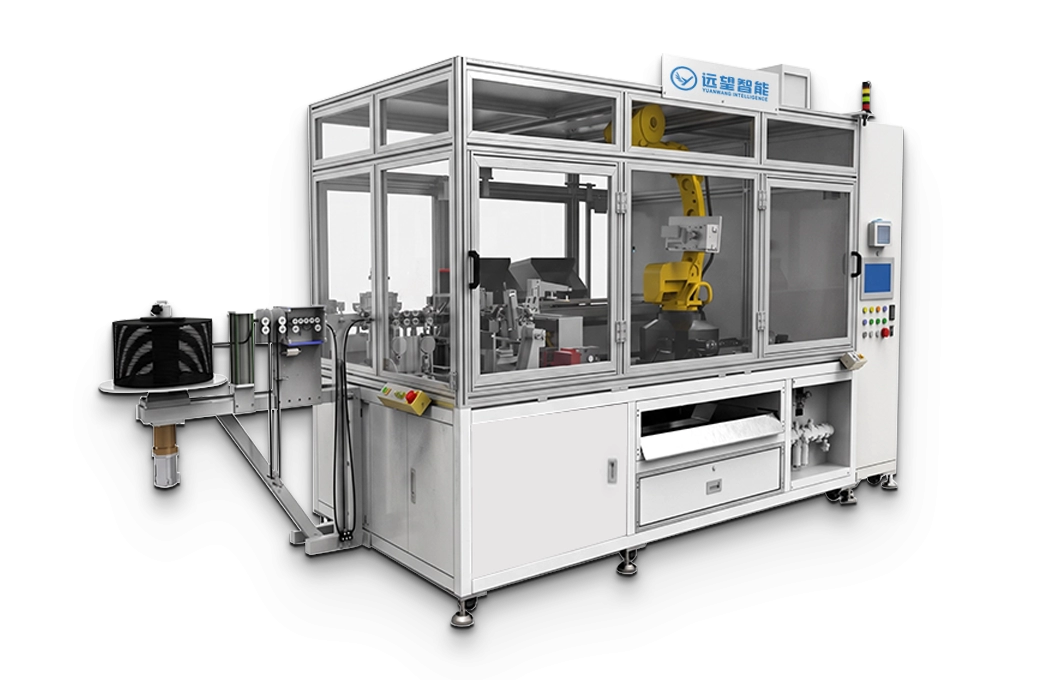

CVS intubation machine
Integrated machine for automatic cutting, assembly, and inspection of hoses, suitable for automatic assembly of liquid cooling pipes and other hoses.
Automated hose feeding ensures each section has a consistent length
Automatic label wrapping enables traceability by the MES system
Fixed-length cutting provides a smooth, burr-free cross-section
The transfer mechanism automatically moves the material
A robotic arm with vision recognition picks and grips the fittings
Fittings undergo leak testing and oiling to reduce insertion resistance
A moving mechanism clamps the hose and fitting, moves them toward each other with applied pressure, and completes the insertion
Assembly-in-place detection rejects non‑conforming parts
Process
1 person
Number of operators
>99.8%
Product yield rate
<20S
Cycle time
Automated hose feeding ensures each section has a consistent length
Automatic label wrapping enables traceability by the MES system
Fixed-length cutting provides a smooth, burr-free cross-section
The transfer mechanism automatically moves the material
A robotic arm with vision recognition picks and grips the fittings
Fittings undergo leak testing and oiling to reduce insertion resistance
A moving mechanism clamps the hose and fitting, moves them toward each other with applied pressure, and completes the insertion
Assembly-in-place detection rejects non‑conforming parts
