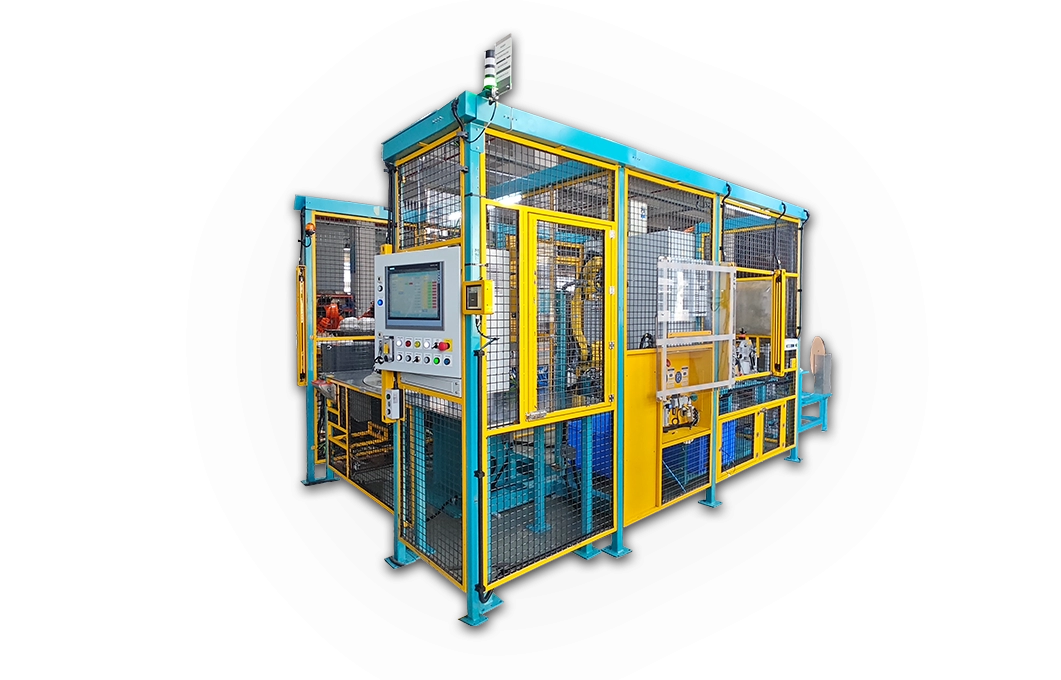

Automatic assembly machine for automobile water pump pipeline
Integrated machine for automatic cutting, assembly, and testing of hoses, suitable for automatic assembly of hoses such as liquid cooling pipes and automotive water pump pipes
EPDM hose automatic release
Automatic cutting to length (encoder calibration; NG lengths are automatically discarded)
Automatic tape labeling
Robot high-precision gripping of the hose, automatic oiling, and precise placement
Automatic assembly of pump, connector and hose (two press‑fit operations, seamless connection)
After assembly, a vision inspection system automatically scans the gap at the joint
OK/NG visual status light indication and on‑screen data display
High‑efficiency production with a rotary return‑cycle design, achieving zero waiting time for products
Process
1 person
Number of operators
>99.5%
Product yield rate
18s/pcs
Cycle time
EPDM hose automatic release
Automatic cutting to length (encoder calibration; NG lengths are automatically discarded)
Automatic tape labeling
Robot high-precision gripping of the hose, automatic oiling, and precise placement
Automatic assembly of pump, connector and hose (two press‑fit operations, seamless connection)
After assembly, a vision inspection system automatically scans the gap at the joint
OK/NG visual status light indication and on‑screen data display
High‑efficiency production with a rotary return‑cycle design, achieving zero waiting time for products
