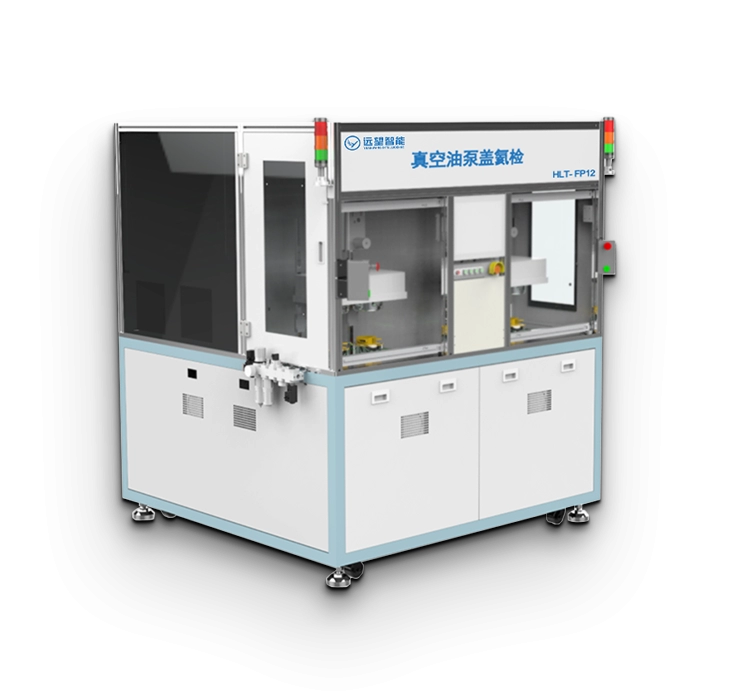

Oil pump cover helium detector
By detecting minute leaks at the joints between the fuel pump cover and components such as the fuel tank and fuel rail in a car's fuel system, performance degradation or safety hazards caused by fuel leakage can be prevented.
Vacuum chamber size can be customized according to requirements.
Multi-cavity, multi-station
The machine's inspection cycle is within 40 seconds.
Tested leak rate: 3.0 * 10-5mbar * l/s
The helium filling pressure is 10 kPa.
Helium recovery rate ≥98%
Helium concentration: 10%-99.99%
It can be automated, using robots or high-speed chain conveyors.
Process
10 kPa
helium filling pressure
≥98%
Helium recovery rate
10%-99.99%
helium concentration
Vacuum chamber size can be customized according to requirements.
Multi-cavity, multi-station
The machine's detection cycle is within 40 seconds.
Tested leak rate: 3.0 * 10-5 mbar * l/s
It can be automated, using robots or high-speed chain conveyors.
