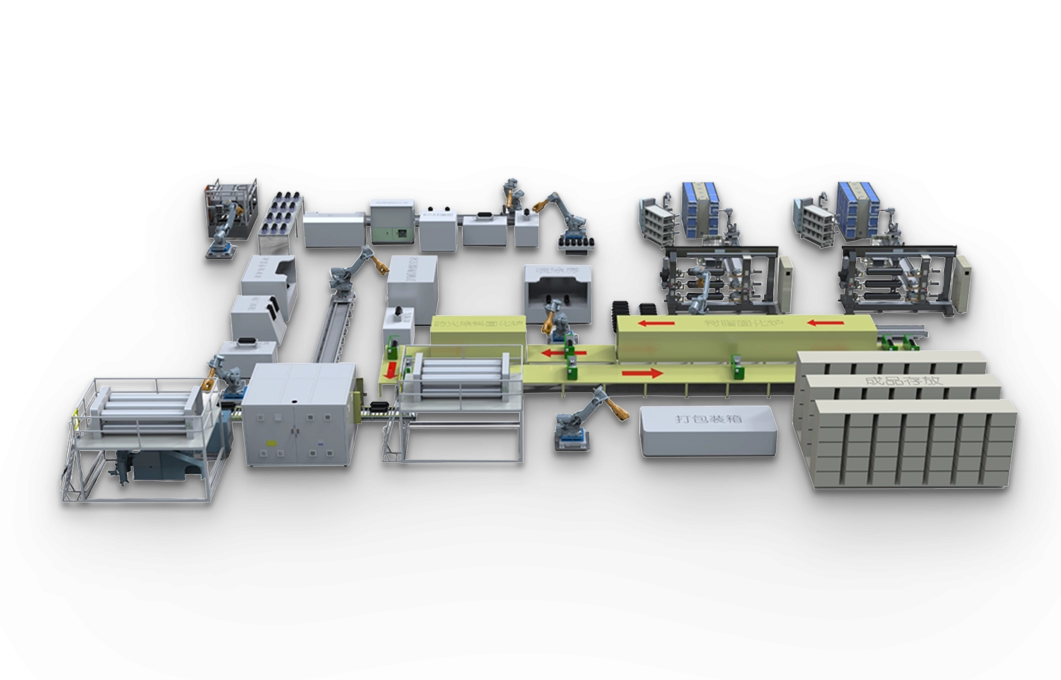

Fully automated assembly and testing line for hydrogen cylinders
Applications: Automated production lines for automotive hydrogen cylinders
Bottle port assembly inspection
Infrared welding
carbon fiber winding
Curing, spraying, hydrogen leak testing, functional testing
Pipe and valve assembly
Robot automatic loading and unloading
AGV transport
Process
80~120 N·m
Tightening torque (N·m)
≤0.05mm
Coaxiality detection: Laser measurement deviation
≤1×10⁻⁷
Helium leak detection rate (mbar·L/s)
10,000 times
Air pressure circulation (times)
Bottle port assembly inspection, infrared welding
Carbon fiber winding (high specific strength, high specific modulus)
End cap assembly coaxiality inspection: laser measurement deviation ≤ 0.05mm
Curing, spraying, hydrogen leak testing,
Functional testing
Functional testing
Pipe and valve assembly, automated robot loading and unloading, AGV handling
