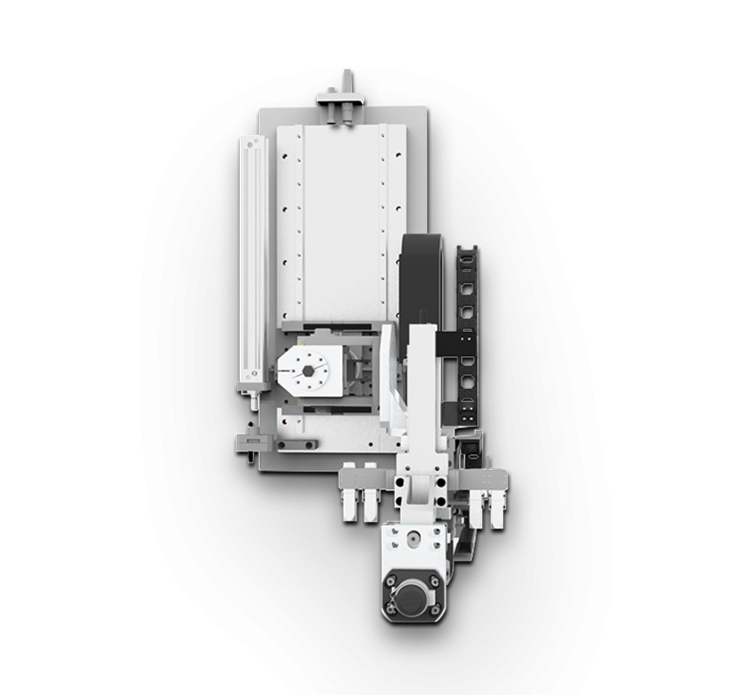

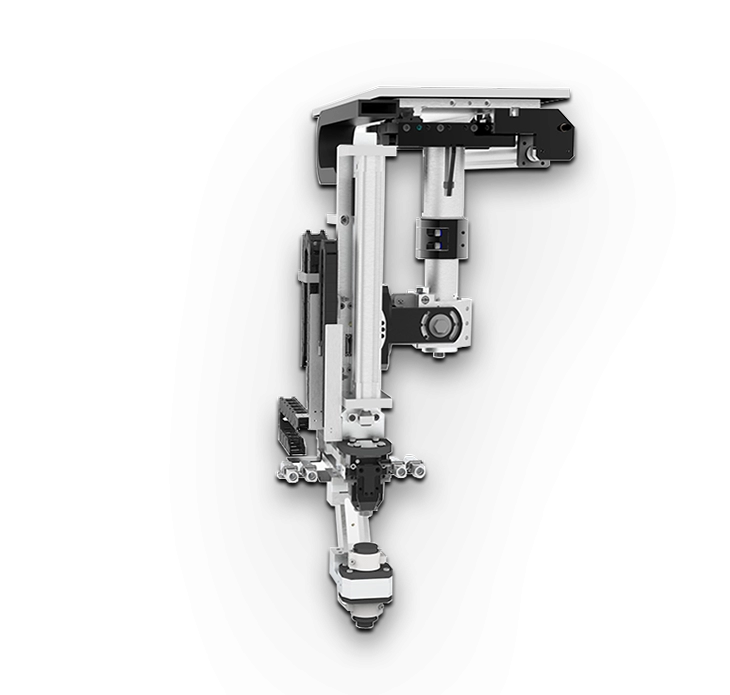

Standard welding robot
Applications include hot melt welding of plastic parts in the automotive, home appliance, new energy materials, and medical manufacturing industries.
Product Details
Equipped with a support unit with six degrees of freedom adjustable.
Integrated welding component transfer module, hot plate transfer mechanism and welding component clamping system
It adopts a dual heating system, a high-precision pneumatic actuator, and dual temperature detection and process signal monitoring devices.
Equipped with an anti-overflow flow channel design, effectively preventing blockages.
High-precision pressure control is achieved by using a six-stage fusion welding process in conjunction with a dual proportional valve.
Equipped with a dual thermocouple temperature monitoring system to ensure stable process temperature in real time.
Parameters
| Parameter categories | Technical indicators |
| Time adjustment | 0~999S |
| Pressure regulation | 0~700N |
| Temperature regulation | 0~400℃ |
| Hot plate specifications | The surface roughness of the heating surface meets Ra 0.4. |
The outer edge of the heating surface is rounded with a radius of 1.5mm. | |
| Temperature detection | Dual thermocouple monitoring |
