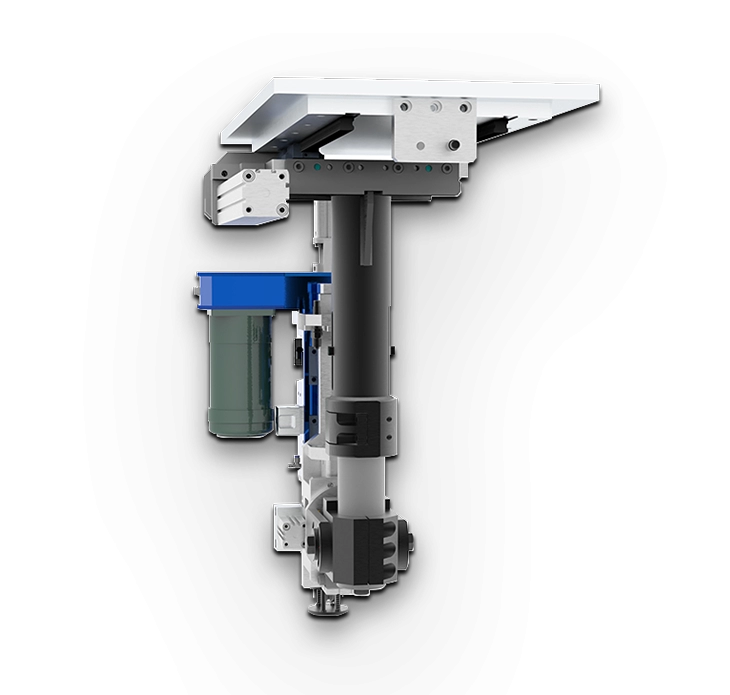

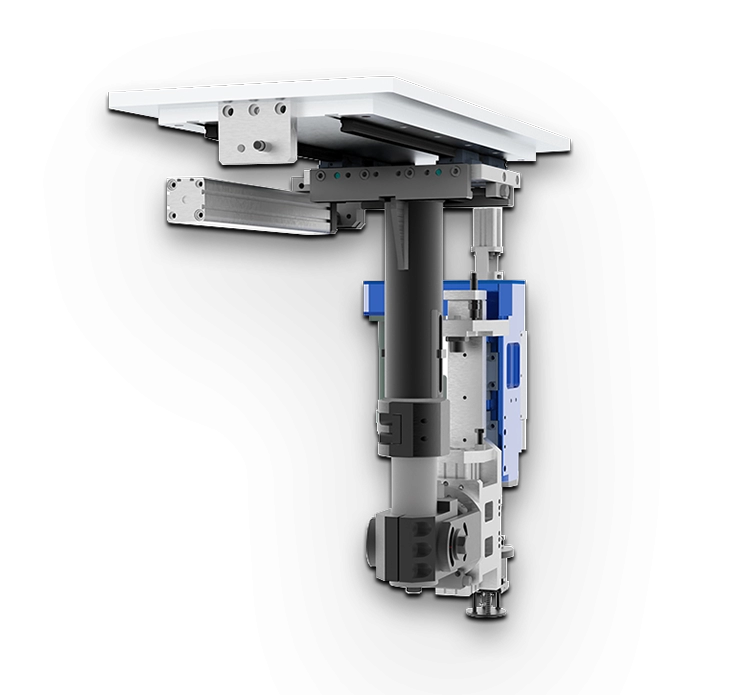

Standard chipless drilling robot
Automatic drilling of small-diameter holes is applied in the automotive, home appliance, new energy materials, and medical manufacturing fields.
Product Details
Equipped with a support unit with six degrees of freedom adjustable.
The system integrates a servo motor, power transmission system, drive spindle, machine mouth device, waste discharge mechanism, pneumatic control unit, and signal monitoring sensors.
Using chipless machining technology, the hole is formed by precision cutting with a rotary tool.
Waste generated during processing is collected in a waste collection tray via a dedicated material channel. The system is equipped with a waste detection function to ensure that the surface of the processed parts is clean and free of residue.
Supports adjustable supply speed to adapt to various process requirements.
Parameters
| Parameter categories | Technical indicators |
| Aperture accuracy | The orifice size accuracy can reach ±0.05mm. |
| Suitable aperture range | Standard fits apertures from 22mm to 75mm. |
| Tool chip face | Surface roughness requirement Ra 0.8 |
