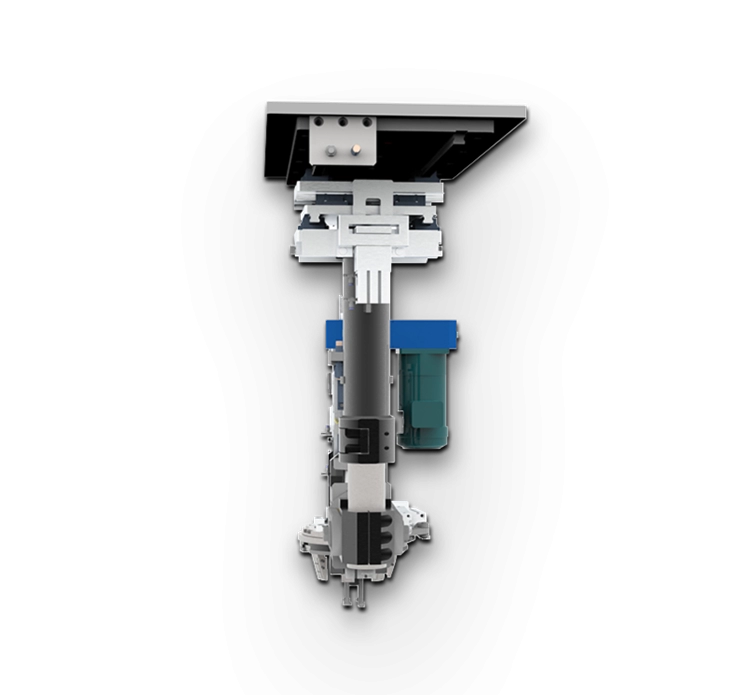

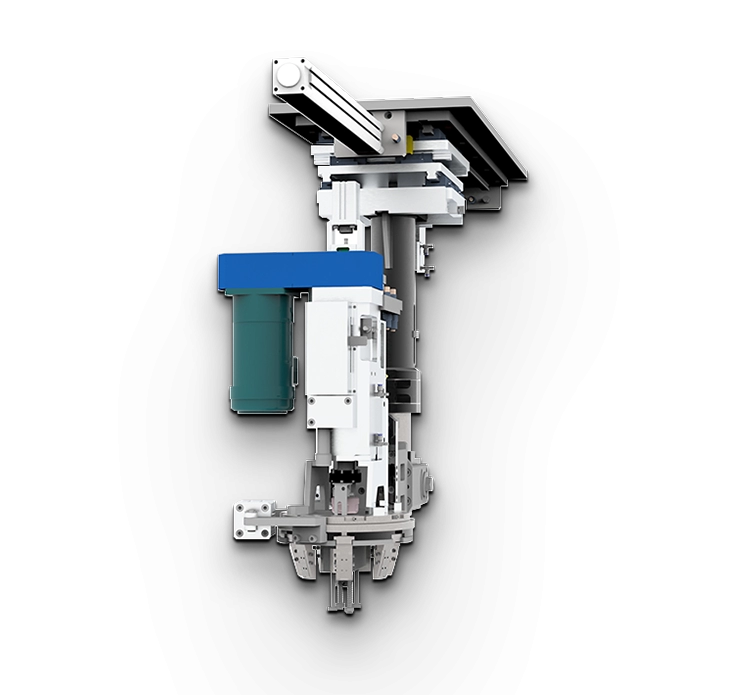

Pump port drilling robot
Chip-free opening for large-diameter round holes in plastic products used in automotive, home appliance, new energy materials, and medical manufacturing industries.
Product Details
Equipped with a support unit adjustable to six degrees of freedom and a self-centering gripper mechanism.
The system integrates a servo motor, power transmission system, drive spindle, machine mouth device, waste discharge mechanism, pneumatic control unit, and signal monitoring sensors.

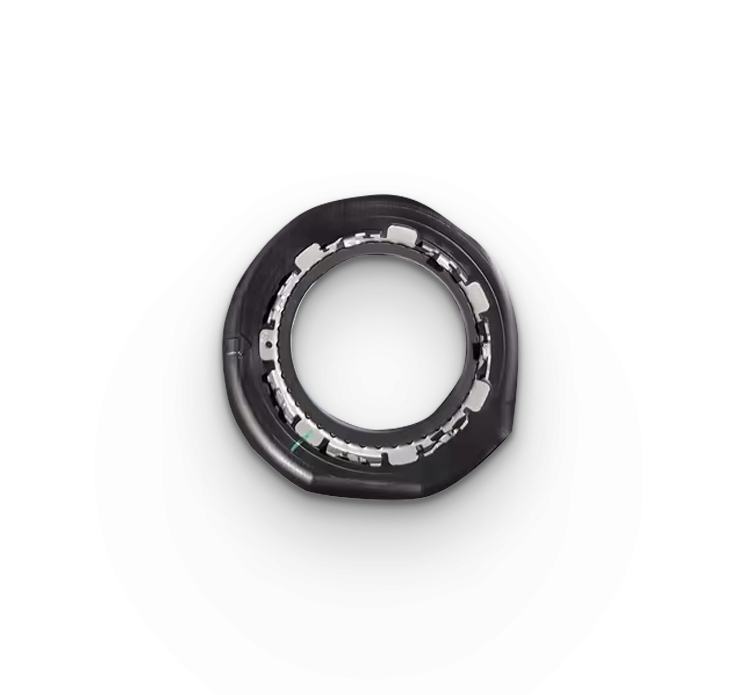

Using chipless machining technology, the hole is formed by precision cutting with a rotary tool.
Waste generated during processing is collected in a waste collection tray via a dedicated material channel. The system is equipped with a waste detection function to ensure that the surface of the processed parts is clean and free of residue.
Supports adjustable supply speed to adapt to various process requirements.
Parameters
| Parameter categories | Technical indicators |
| Aperture accuracy | The orifice size accuracy can reach ±0.05mm. |
| Suitable aperture range | Standard fits 85mm~130mm aperture |
| Tool chip face | Surface roughness requirement Ra 0.8 |
