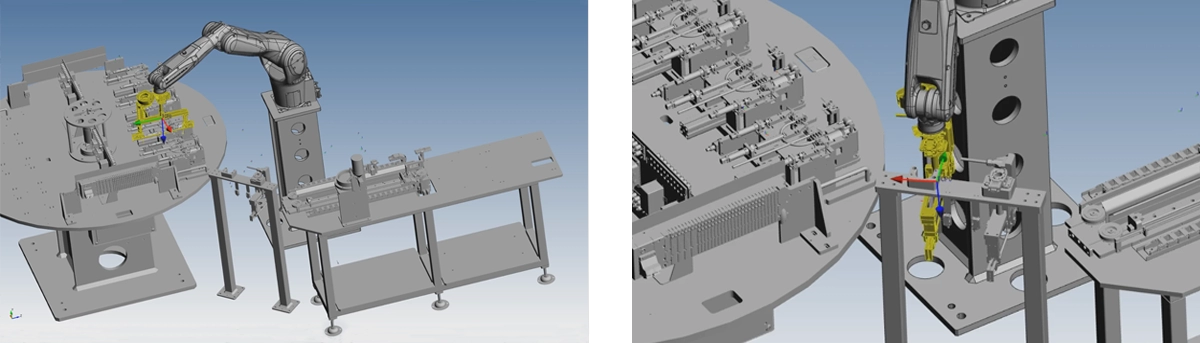

By integrating all motion units into a single simulation platform, the timing and spatial relationships of these units in actual production are accurately simulated, with time-axis control accurate to the millisecond level, exposing potential interference risks caused by communication delays or logical errors.

It not only examines the equipment itself, but also calculates the maximum dynamic envelope space formed during its movement.Based on this, the equipment layout was scientifically planned and the location of safety barriers was optimized to minimize the production line footprint while ensuring safety.

In production lines that include human-machine collaborative workstations, the interaction process between operators and automated equipment is accurately simulated.Based on ISO 10218-1/2 and TS 15066 standards, safety functions such as speed and separation monitoring, power and force limiting are verified to ensure the safety of manual operations.
