In 2026, as integrated thermal management systems for new energy vehicles rapidly evolve toward higher integration, multi-channel architectures, and intelligence, the precision manufacturing capability of core thermal management components has become a critical competitive factor in the industry chain. Shenzhen Yuanwang Industrial Automation Equipment Co., Ltd. (referred to as "Yuanwang Intelligence") recently successfully delivered a semi-automatic assembly and test line for automotive water valve actuators to a leading Tier 1 automotive parts manufacturer. Leveraging a modular architecture, comprehensive in-process testing, and an MES traceability system, the line helps customers achieve both capacity and quality upgrades in the field of thermal management.
I. Modular Architecture for Flexible Reconfiguration, Covering Multi-Process Integrated Assembly

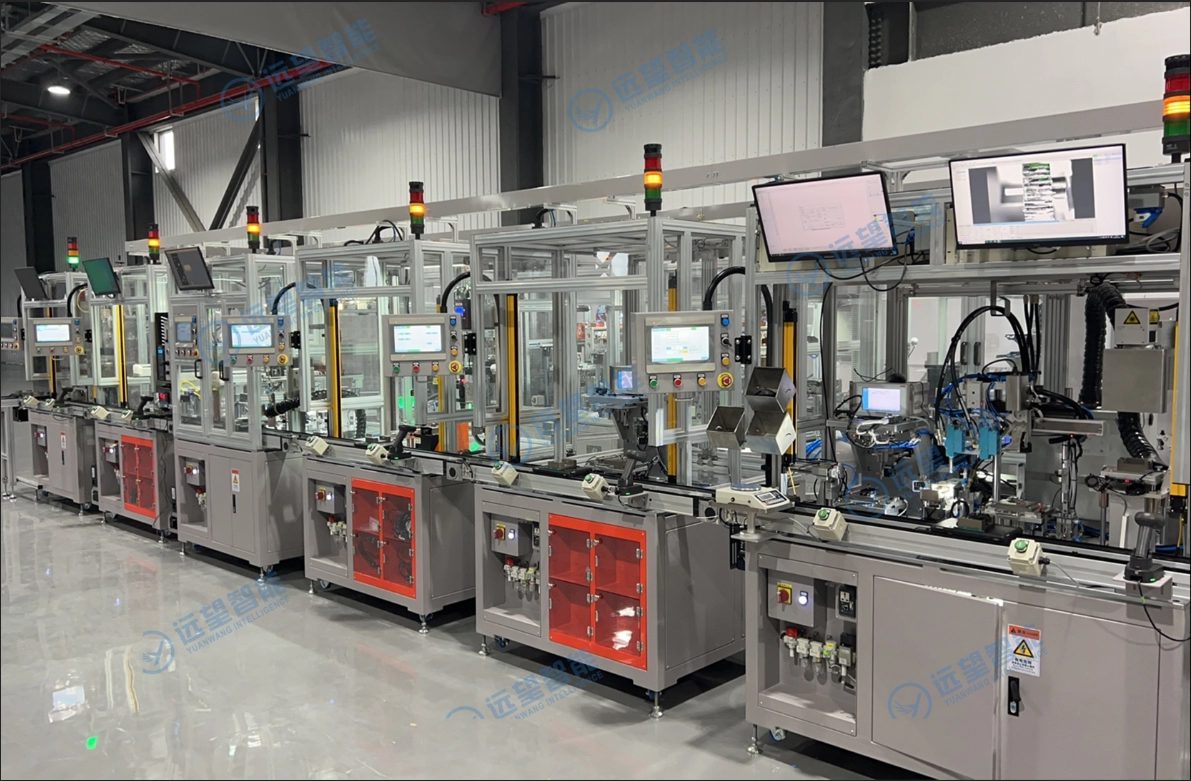

The production line adopts a modular architecture, consisting of multiple independent standardized functional units. Customers can flexibly configure, add, remove, or rearrange functional modules according to the process requirements of different water valve actuator models, significantly reducing changeover costs and downtime.

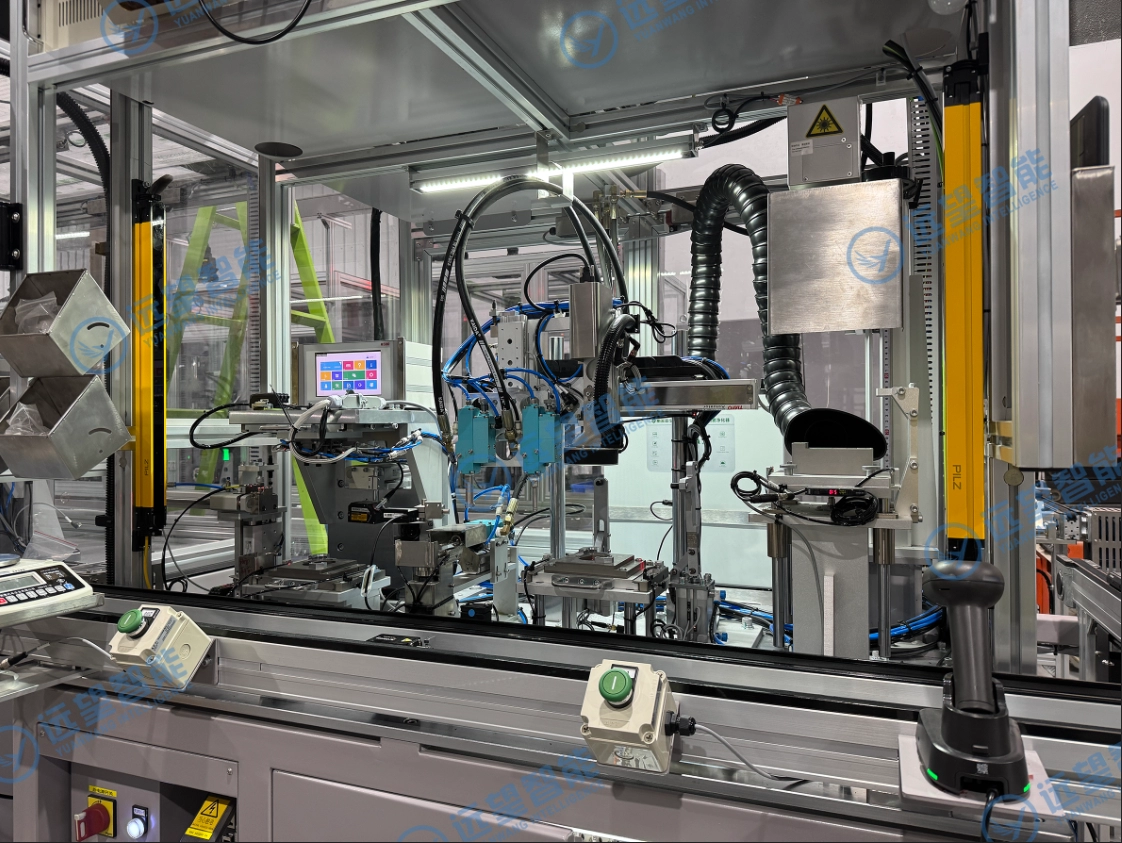

In the assembly stage, the line integrates core processes such as automatic oil application, automatic screw driving, vision-guided positioning, and laser welding. The vision system recognizes component assembly positions in real time and automatically corrects deviations, while laser welding ensures a durable and reliable seal of the actuator housing. The application of these precision processes directly impacts the stability of the thermal management system under long-term high-temperature and high-pressure operating conditions.
II. Comprehensive Functional Testing – Rigorous Checks at Every Stage
The test section of the line incorporates a multi-dimensional 100% inspection system, including leak testing, EOL (End-of-Line) performance testing, noise testing, and angular calibration.
· EOL Test: Simulates various real-world operating scenarios of the thermal management system (e.g., different opening angles and flow conditions) to fully verify the electrical response, torque output, and mechanical durability of the water valve actuator.
· Leak Test: Ensures no leakage of thermal management media through precise detection methods.
· Noise Test: Monitors the acoustic quality of the actuator during operation, preventing abnormal noise from negatively impacting vehicle NVH (Noise, Vibration, Harshness).
· Angular Calibration: Guarantees absolute positioning accuracy between the actuator and the valve body – a prerequisite for precise flow control in the thermal management system.
All test data and production parameters are fed in real time into the line’s MES (Manufacturing Execution System), achieving end-to-end traceability from component loading to finished product output. The overall cycle time is controlled within 80 seconds, meeting high-volume delivery requirements for thermal management components while establishing a complete data record for each product.
III. Empowering the Thermal Management Industry Chain with Flexible and Intelligent Solutions
From modular flexible assembly to multi-dimensional precision testing, from laser welding to MES traceability, this production line fully demonstrates Yuanwang Intelligence’s turnkey delivery capability in the field of thermal management intelligent equipment. Leveraging years of technical expertise in automation, Yuanwang Intelligence provides customers with full-process solutions covering thermal management components such as water valves, electronic water pumps, and refrigerant valves – including assembly, testing, laser welding, screw driving, dispensing, and line-wide information systems. Looking ahead, Yuanwang Intelligence will continue to deepen its presence in areas such as new energy vehicle thermal management, fuel tanks, hydrogen energy, and semiconductors, using standardized functional units to help manufacturers achieve efficient, intelligent, and flexible production transformation.
