Against the backdrop of accelerated upgrading in the automotive manufacturing and new energy vehicle industries, component welding processes are facing higher standards in sealing performance, durability, and production efficiency. Laser welding machines, with their advantages of non-contact operation, small heat-affected zone, and high weld strength, are gradually becoming the core technology for manufacturing key components. Shenzhen Yuanwang Industrial Automation Equipment Co., Ltd. ("Yuanwang Intelligence"), based on its long-term accumulation in automation equipment, has launched a laser welding machine suitable for plastic sealing components in automotive manufacturing and new energy vehicle parts, providing industry users with high-precision, customizable technical solutions.
I. Industry Demands and Application Scenarios of Laser Welding Machines
1.1 Industry Pain Points: Challenges of Precision and Consistency in Sealing Component Welding
Automotive fuel systems, thermal management systems, hydrogen storage and transportation systems, and other fields extensively use plastic sealing components (such as fuel tank punched welding parts, oil pump covers, injector sealing structures, water valve housings, and Type IV hydrogen storage cylinder liners). Traditional hot plate welding and ultrasonic welding often struggle to balance weld strength and appearance consistency when dealing with complex curved surfaces and irregular structures. Laser welding machines utilize high-energy beams to achieve transmission welding. Their non-contact processing, precise thermal control, and curved-surface adaptive capabilities make them the preferred solution for sealing component welding.
1.2 Typical Application Scenarios
· Automotive Fuel Systems: Fuel tank housing sealing, oil pump cover welding, injector plastic housing encapsulation.
· New Energy Vehicle Thermal Management: Water valves, cold plate connectors, heat pump module plastic housing welding.
· Hydrogen Storage and Transportation: Sealing welding of Type IV hydrogen storage cylinder liners and cylinder valve seats.
· Semiconductor Encapsulation: Gas-tight encapsulation of certain plastic housings.
II. Product Features and Technical Parameters of the Laser Welding Machine

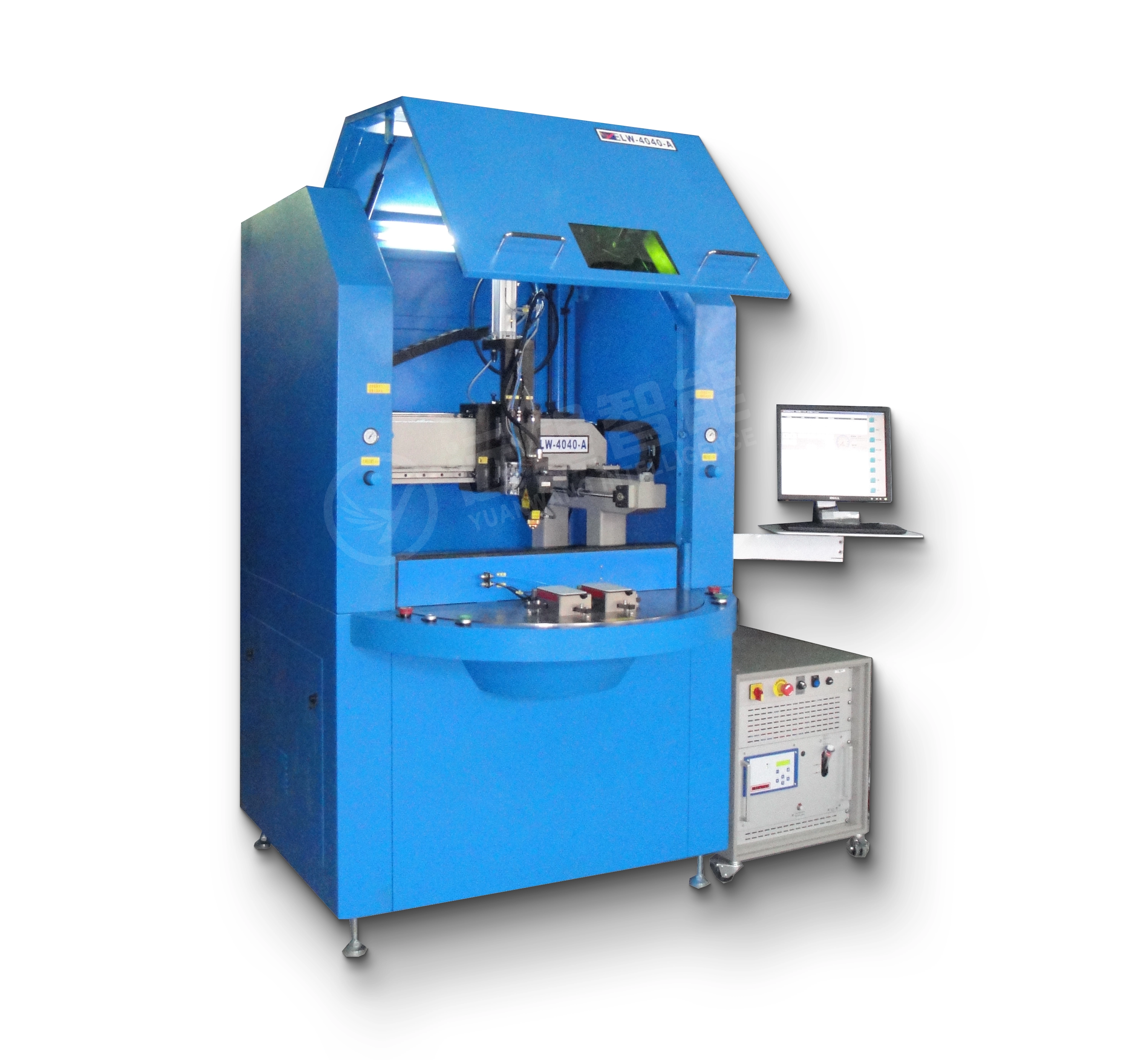

The laser welding machine provided by Yuanwang Intelligence is specifically designed for plastic sealing component welding in automotive manufacturing and new energy vehicle parts. It adopts the transmission welding principle and features the following core parameters and functions:
Core Definitions:
· Transmission Welding: The laser penetrates the upper transparent or translucent plastic and is absorbed by the lower absorbent plastic, converting the energy into heat to melt and join the two layers.
· 3-Axis Adaptive Curved Surface Welding: The equipment automatically adapts to changes in the workpiece surface curvature, ensuring the laser beam remains perpendicular to the welding interface.
· Beam Shape: Supports either spot beam (for precise contour welding) or line beam (for wide, fast welding), switchable according to the workpiece structure.
Typical Applicable Materials: Polypropylene (PP), Polyamide (PA6/PA66), PBT, PPS, and glass fiber reinforced plastics, etc.
III. Why Choose Us? — Technology and Production Strength
Yuanwang Intelligence's laser welding machine is not an off-the-shelf product, but rather developed based on deep understanding of automotive component processes and long-term experience in automated production line integration.
3.1 Process Database and Parameter Self-Adaptation
· A process parameter library (power, speed, spot size, defocus amount, etc.) has been established for different plastic grades, thicknesses, and color combinations.
· The equipment can automatically retrieve the optimal welding recipe by scanning the material code.
3.2 High-Precision Motion and Vision Guidance
· The three-axis motion system uses servo drives and ball screws, with a repeat positioning accuracy of ≤±0.02 mm.
· An optional coaxial vision system enables automatic weld path correction.
3.3 Real-Time Welding Quality Monitoring
· Integrated infrared pyrometer or photodiode monitors melt pool temperature or transmitted light intensity in real time to determine welding quality.
· Supports MES system integration for full traceability.
3.4 Manufacturing System
· The Dongguan production base is equipped with precision sheet metal fabrication and modular assembly lines.
· Each laser welding machine undergoes 72-hour burn-in testing and welded sample tensile testing before delivery, accompanied by a process report.
IV. Customization Services and Success Stories
4.1 Customization Capabilities
Yuanwang Intelligence provides non-standard design:

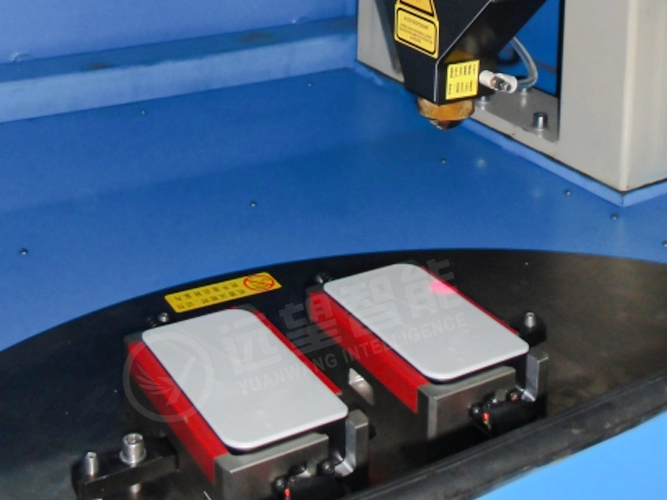

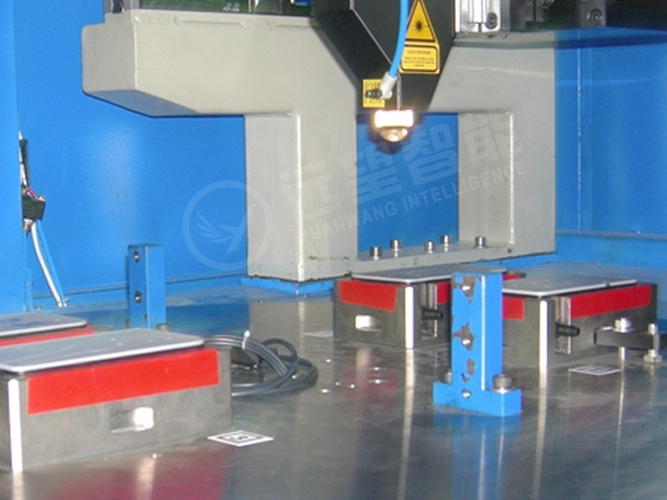

· Fixture Customization: Design of pneumatic or vacuum-absorbing fixtures for irregular sealing components.
· Optical System Options: Optional oscillating welding head or time-sharing optical path.
· Automation Integration: Reserved interfaces for robotic loading/unloading, enabling integration into existing assembly and testing lines.
4.2 Typical Application Cases
· Fuel Pump Cover Welding for a Joint Venture Brand: The original ultrasonic welding had issues with flash and air tightness fluctuations. Switching to a 940 nm / 200 W laser welding machine with a welding speed of 3 m/min and a spot diameter of 1.5 mm achieved zero leakage and passed thermal cycle tests from -40°C to 120°C.
· New Energy Vehicle Thermal Management Water Valve Housing Sealing: The workpiece is PA66+GF30, requiring a burst pressure >2.5 MPa. Using a 1064 nm / 300 W laser welding machine with 3-axis adaptive curved surface welding increased the yield rate from 92% to 98.5%.
· Pre-welding of Type IV Hydrogen Storage Cylinder Liner and Valve Seat: Provided a 500 W high-power laser welding machine to a hydrogen energy customer, with a welding speed of 0.5 m/min and a spot diameter of 2 mm, meeting Type IV cylinder sealing requirements.
4.3 Service Response Commitment
· Technical Consultation: Preliminary process evaluation provided within 24 hours.
· Sample Testing Service: With 10-20 sample parts provided by the customer, a welding test report is issued within 5 working days.
· On-Site Support: After equipment delivery, engineers remain on-site for commissioning until the first qualified part is produced.
· Remote Diagnostics: Remote troubleshooting assistance is available when the equipment is connected to the network.
V. Summary
In the context of continuously increasing requirements for sealing performance, lightweighting, and production efficiency in automotive manufacturing and new energy vehicle components, laser welding machines have become the preferred technological path for plastic sealing component welding. Yuanwang Intelligence's laser welding machine features selectable wavelengths (940 nm / 1064 nm), power range of 50-500 W, 3-axis adaptive curved surface welding, adjustable spot diameter of 0.1-2 mm, and welding speed of 0.1-5 m/min, along with fixture customization, a process database, quality monitoring, and MES integration services.
From fuel tank components to thermal management modules, from hydrogen storage cylinders to semiconductor encapsulation, Yuanwang Intelligence's laser welding machine has demonstrated its stability and cost-effectiveness in numerous mass production projects. We are committed to being a trustworthy technical partner in the field of precision plastic welding, helping customers achieve "zero-defect" sealing manufacturing goals.
